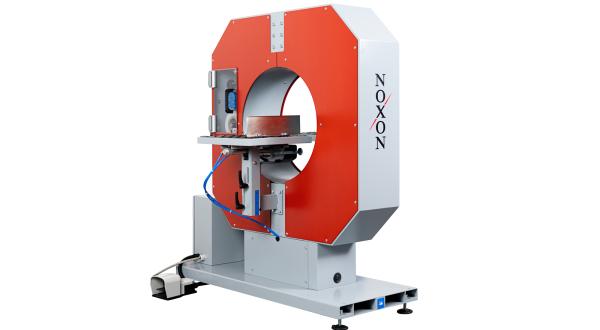

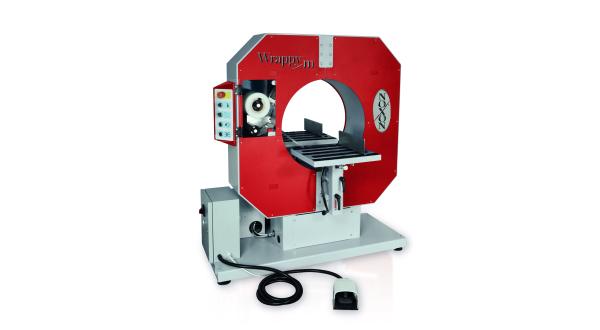

WRAPPY M 12
Manual rotating ring machine for spiral wrapping with stretch film.
| TECHNICAL FEATURES | WRAPPY M12 | |
| Reel width | 125 mm | 250 mm |
| Ring diameter | 1250 mm | |
| Ring rotation speed | 30÷58 rpm | |
| Compressed air consumption per cycle | 3,2 Nl/cycle | |
| Working pressure | 6±1 bar | |
| Power supply | 400V 3Ph+N 50/60Hz | |
| Installed power | 1,5 kW | |

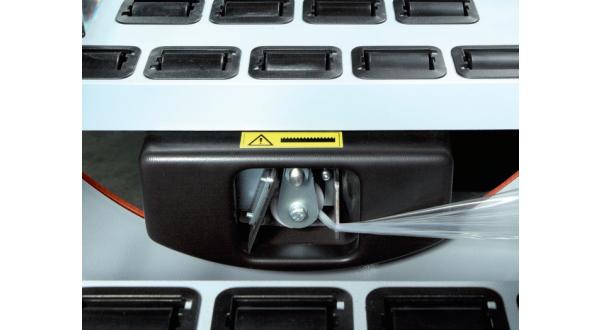

| Cutting end clamping unit | STD | |

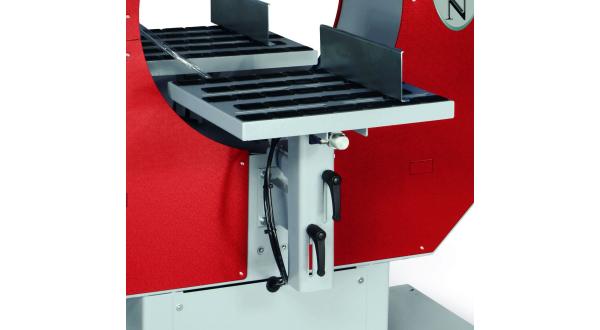

| Adjustable conveyors | 800÷1100 mm | |
| Reel max external diameter | 250 mm | |
| Internal reel diameter | 76 mm | |
| Film thickness | 17÷50 µm | |
