STICKER TBD

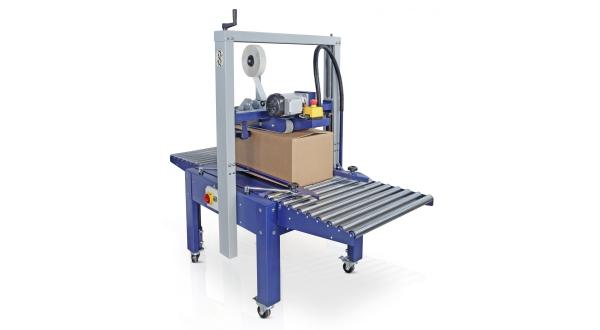

Taping machine with top and bottom drive for closing fixed-format boxes TBD.
| TECHNICAL CHARACTERISTICSÂ |
STICKER
50 TBDÂ |
STICKER 65 TBDÂ |
STICKER 80 TBDÂ |
| Minimum box dimensions (LxWxH)Â Â | 150x135x110 mm (W=135) 150x160x110 mm (W=160) |
150x160x110 mm
|
150x160x150 mm |
| Maximum box dimensions (LxWxH) | ∞x500x500 mm | ∞x650x650 mm | ∞x800x800 mm |
| Supply voltage | 400 V 3Ph 50 Hz+T | ||
| Installed power | 0.4 kW | ||
| Width of motorized belts above and below | 50 mm | 50 mm |
50 mm above
115 mm below |
| Box dragging speed | 22 m/min | ||
| Provision for 2 taping heads (upper/lower) | STD | ||
| Adhesive tape width |
50 (W=135) – 50/75 (W=160) mm (50 TBD)
           50/75 (W=160) mm (65/80 TBD)             |
||
| Vertical flap of adhesive tape | 50-70 mm | ||
