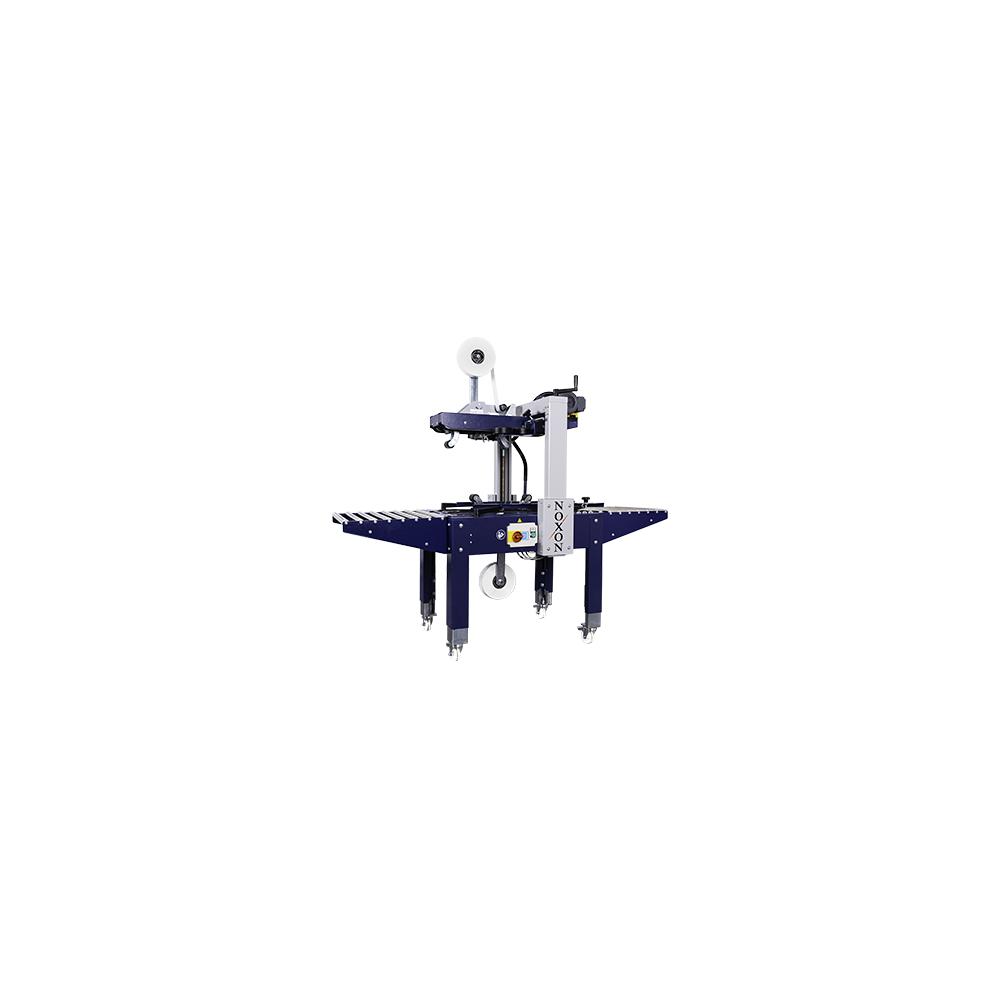

STICKER 50 TBDE
Taping machine with top and bottom drive for closing fixed-format boxes.
| TECHNICAL CHARACTERISTICS | STICKER 50 TBDE |
| Minimum box dimensions (LxWxH) | 150x135x110 (W=135) mm 150x160x110 (W=160) mm |
| Maximum box dimensions (LxWxH) | ∞x500x500 mm |
| Supply voltage | 230 V 1 Ph 50 Hz+T |
| Installed power | 0.4 kW |
| Width of motorized belts above and below | 50 mm |
| Box dragging speed | 22 m/min |
| Provision for 2 taping heads (upper/lower) | STD |
| Adhesive tape width | 50(W=135) mm 50/75 (W=160) mm |
| Vertical flap of adhesive tape | 50-70 mm |
