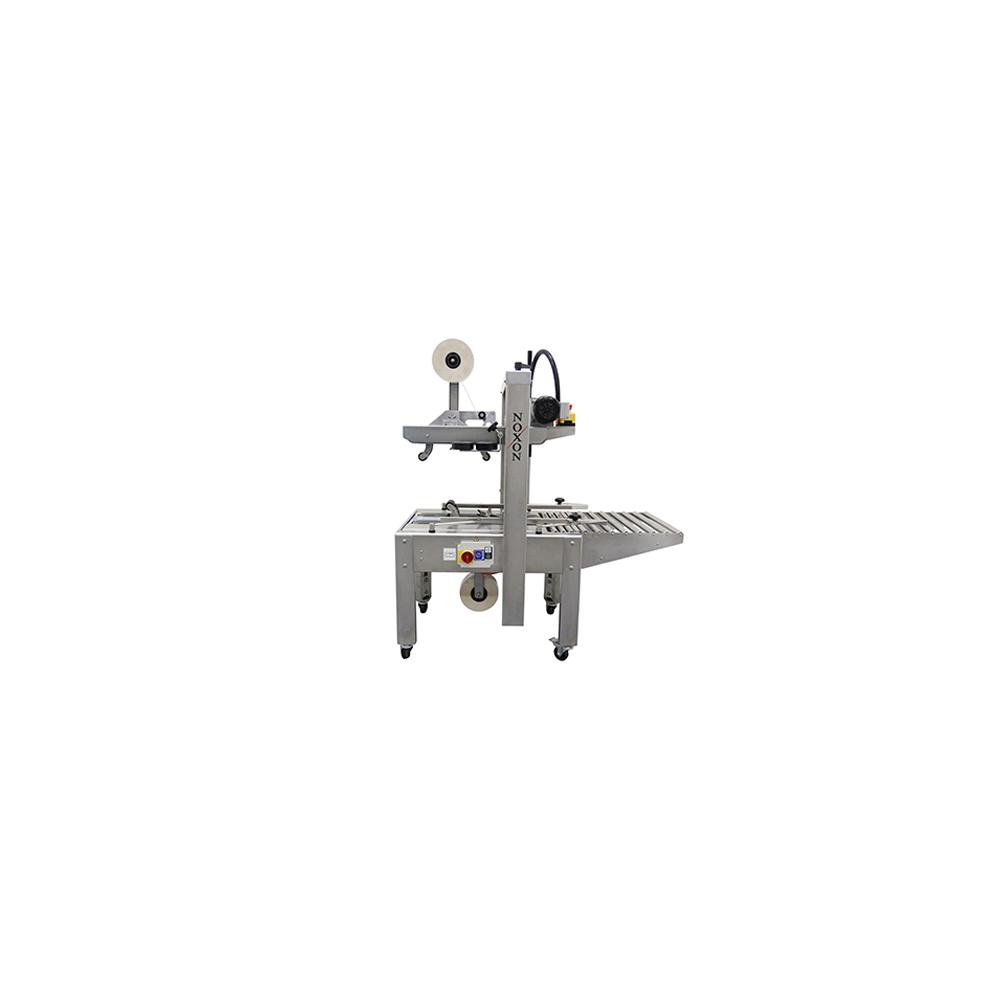

STICKER 50 TBD INOX
Taping machines with top and bottom drive, for closing fixed-format boxes.
| TECHNICAL CHARACTERISTICS | STICKER 50 TBD INOXÂ |
| Minimum box dimensions (LxWxH) | 150x135x110 (W=135) mm 150x160x110 (W=160) mm |
| Maximum box dimensions (LxWxH) | ∞x500x500 mm |
| Supply voltage | 400V 3Ph 50Hz+TÂ |
| Installed power | 0.4 kW |
| Width of motorized belts above and below | 50 mm |
| Box dragging speed | 22 m/mm |
| Provision for 2 taping heads (upper and lower) | std |
| Adhesive tape width | 50 mm (W=135) 50/75 mm (W=160) |
| Vertical flap of adhesive tape | 50-70 mm |
