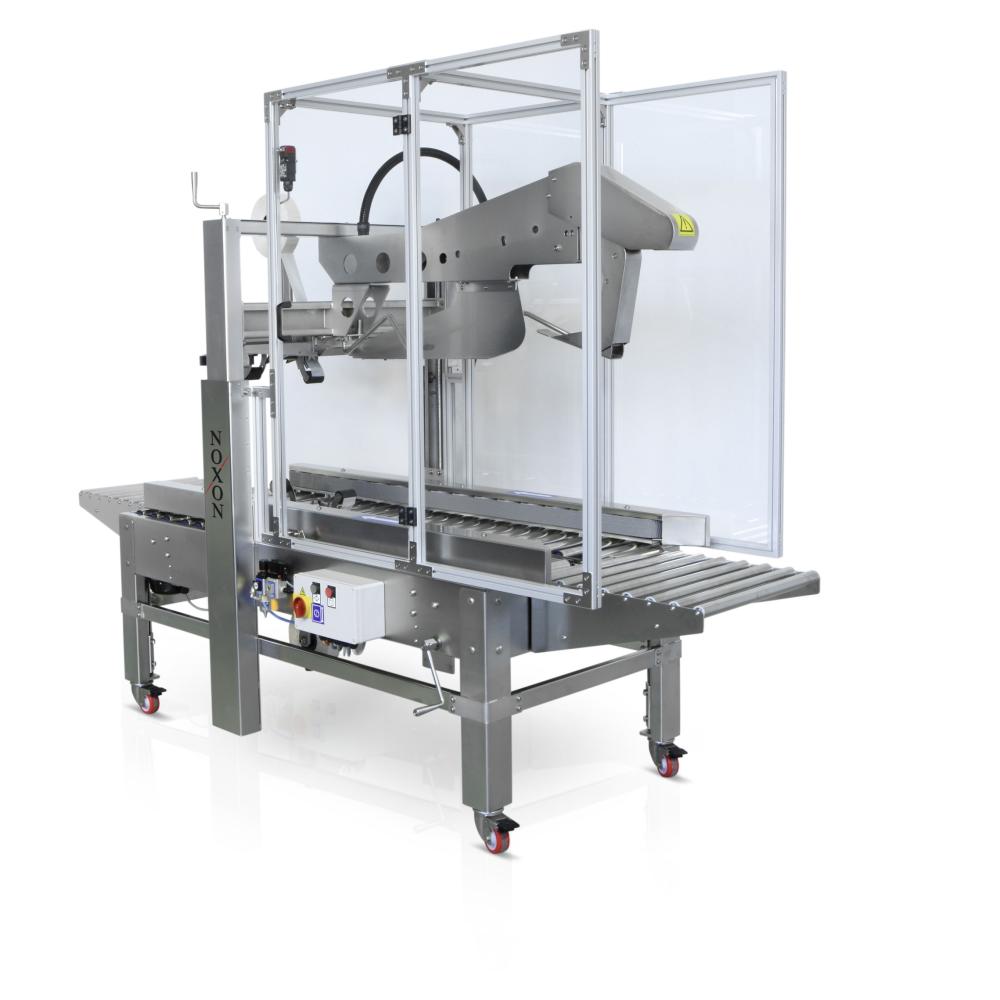

STICKER 50 CF INOX
Semi-automatic side-drive taping machine for closing fixed-format boxes, with a device for automatically folding the top flaps.
| TECHNICAL CHARACTERISTICS | STICKER 50 CF STAINLESS STEELÂ Â |
| Minimum box dimensions (LxWxH) | 150x110x110 mm |
| Maximum box dimensions (LxWxH) | 650x500x500 mm |
| Supply voltage | 400V 3Ph 50Hz + T |
| Installed power | 0.4 kW |
| Compressed air consumption | 20 Nl/min |
| Operating pressure | 6±1 bar |
| Height of motorized side guide belts | 50 (75 opt.) mm |
| Box dragging speed | 22 (m/mm) |
| Provision for 2 taping heads (upper and lower) | std |
| Adhesive tape width | 50 std. (75 opt.) |
| Vertical flap of adhesive tape | 50-70 mm |
