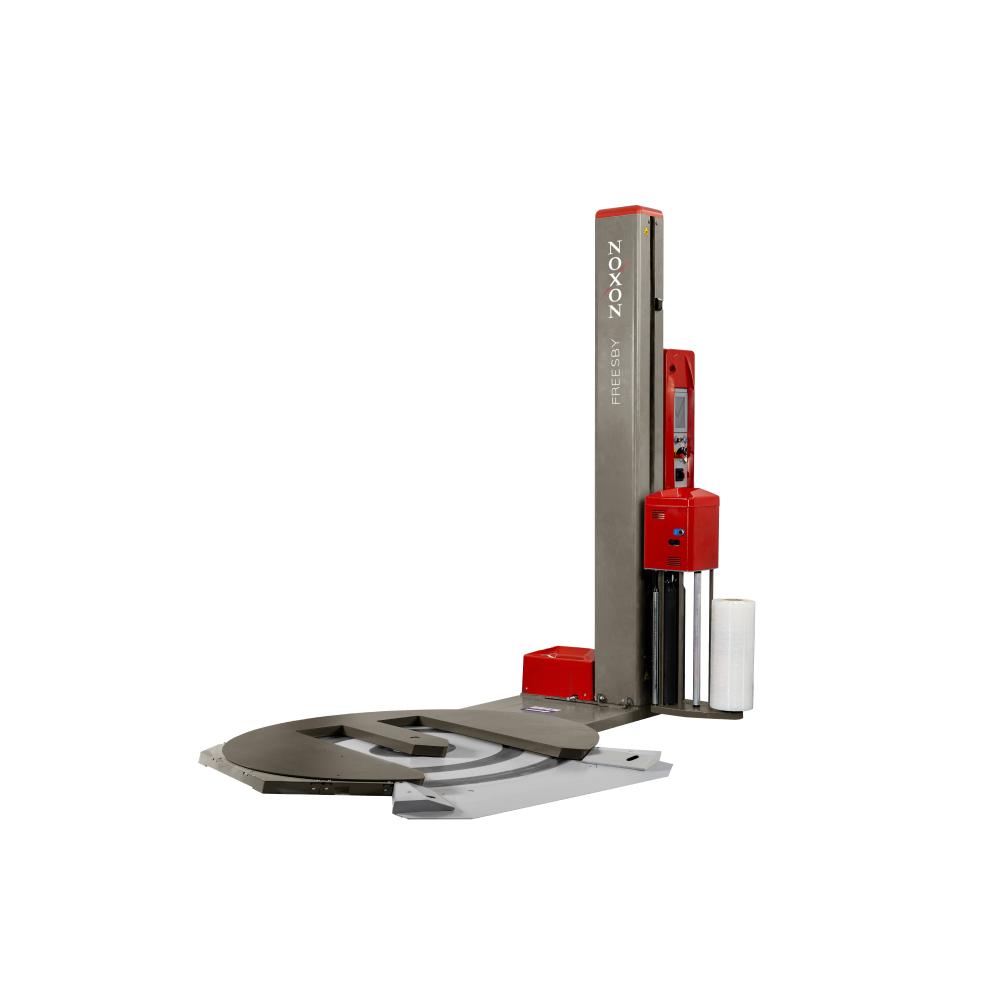

FREESBY T3 INOX

The Freesby T3 INOX is a semi-automatic turntable for wrapping pallets with stretch film, designed to meet packaging needs in environments requiring high hygiene standards. This version combines the reliability and productivity of the Freesby T3 with the strength and durability of stainless steel, making it ideal for sectors such as food, pharmaceutical and chemical.

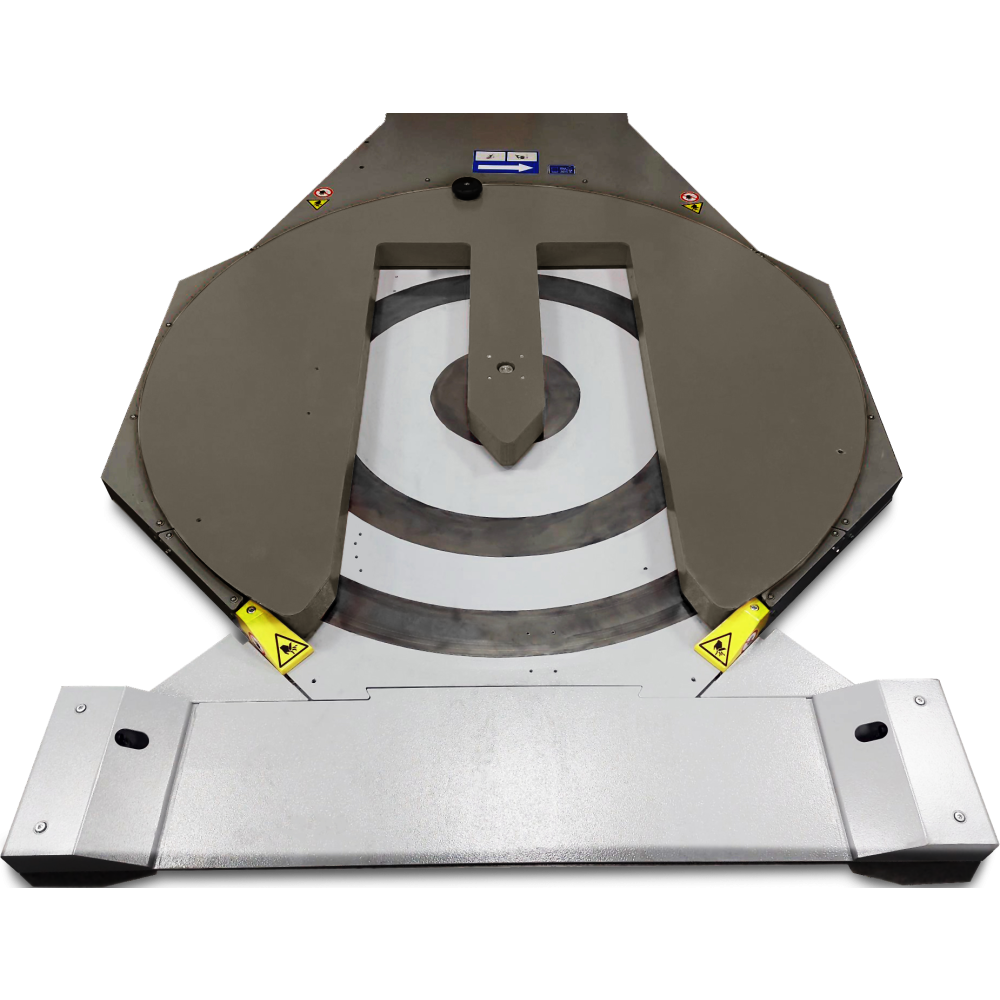

Made entirely of stainless steel, the Freesby T3 INOX offers outstanding corrosion resistance and ease of cleaning, ensuring compliance with the strictest hygiene regulations. The T3 base, designed for pallet truck loading, allows a choice of three loading configurations, ensuring maximum operational versatility.

The turntable is optimised for stabilising light and irregular loads and, thanks to the N-Connect system, allows remote monitoring of functions, offering total control and efficient management of the wrapping process.

Innovative control panels (X4 and X5) ensure simple and intuitive operation, allowing work cycles to be programmed, wrapping programmes to be customised and film pull levels to be adjusted. In addition, the Freesby T3 INOX is available with three carriage variants, each equipped with an electromagnetic brake film pull system, adjustable from the panel to ensure precise and reliable wrapping.

With its robust and functional design, the Freesby T3 INOX is the ideal solution for companies operating in sensitive environments, combining efficiency, hygiene and technological innovation to optimise packaging processes.

TECHNICAL FEATURES FREESBY INOX
X4 T3 310
FREESBY INOX
X4 T3 312
FREESBY INOX
X5 T3 314
Carriage type Electromagnetic
power brake
Power pre-stretch
motorized
2 variable
pre-stretch motors
Film stretch Adjustable from panel Adjustable from panel Adjustable from panel
Pre-stretch N/A 250% 150÷400%
Power supply voltage VAC 230V 1 PH(±10%) 50/60 Hz
Installed power 1,5 kW 1,9 kW 2,3 kW
Carriage up-down speed 1,4÷4 m/min
Table rotation speed 5÷12 rpm
Plate diameter Ø1650 mm STD –  Ø1800 mm Opt.
Plate capacity 1500 kg 1500 kg 1500 kg
Synchronised stop STD
Progressive start-up STD
Photocell delay STD
Height detection photocell STD
Front and rear forklift capability Rear Rear Rear
