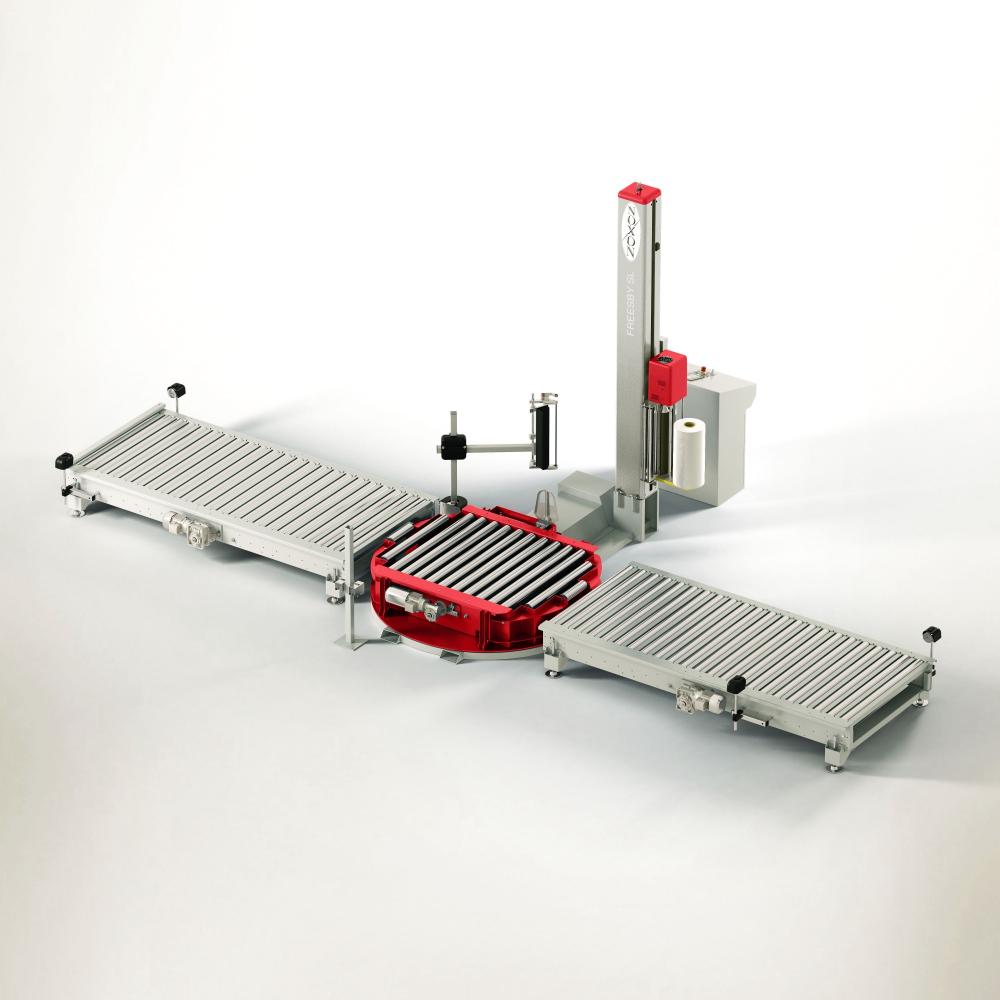

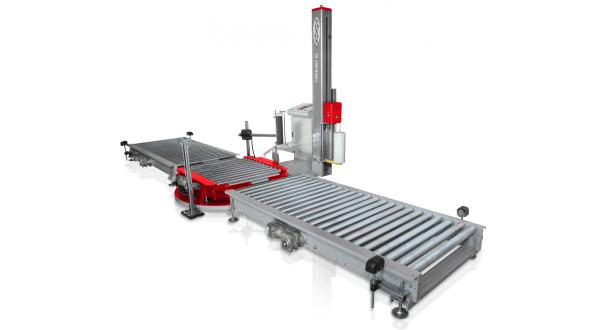

FREESBY SL
FREESBY SL 212-214
is a high-performance automatic wrapping station for end-of-line packaging.
This wrapping machine features a rotating table with motorized galvanized rollers for wrapping products with vertical stretch film, equipped with a clamping, cutting, and tail-eliminating device. The machine can be installed in industrial environments at the end of an automatic palletizing line.
TROLLEY 212
Trolley with a double pre-stretch system activated from the control panel.
The trolley is equipped with a fixed pre-stretch of 250% (STD.) or pre-stretch of 150%, 200%, or 300% (OPT.).
“QLS” (quick load system) for rapid film insertion.
TROLLEY 214
Trolley with pre-stretch rollers and independent dual motors with
pre-stretch ratio adjustment from the control panel from 150% to 400%. Film deposit force on the load can be adjusted from the control panel and controlled by an electronic device. “QLS” system (quick load system) for rapid film loading.
| TECHNICAL FEATURES | FREESBY SL 212 | FREESBY SL 214 |
| Carriage type | Power pre-stretch motorized | 2 variable pre-stretch motors |
| Film stretch | Adjustable from panel | Adjustable from panel |
| Pre-stretch | 250% | 150-400% |
| Power supply voltage | VAC 230V 50/60Hz 1Ph+N | |
| Installed power | 4 kW | 4.3 kW |
| Maximum productivity per hour | 25 pallets/h | |
| Carriage up-down speed | 1.5÷5,5 m/min | |
| Table rotation speed | 5÷15 rpm | |
| Variable roll speed | 8÷11 or 12÷15 m/min | |
| Plate capacity | 1500 kg | |
| Front and rear forklift capability | STD | |
