FREESBY LP
Semi-automatic turntable stretch film pallet wrapper.
The new generation of turntable stretch wrapping machines that is redefining the standards of reliability and productivity in the industry. We introduce you to the new Freesby LP.
The Freesby LP is at the forefront of reliability and productivity and is designed with a focus on ease of use thanks to new user-friendly multifunctional panels and to the features of the turntable designed for stabilising light and irregular loads, with the possibility of remote monitoring of functions thanks to the N-Connect system.

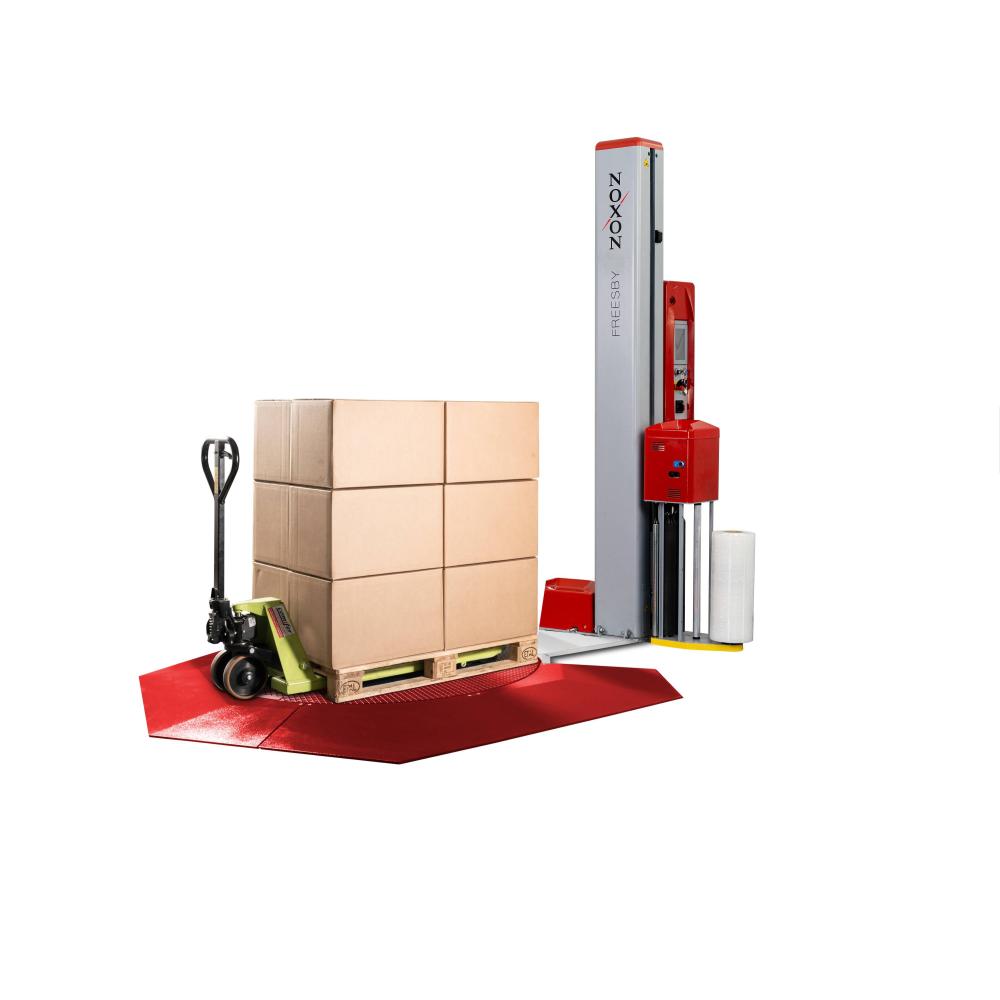

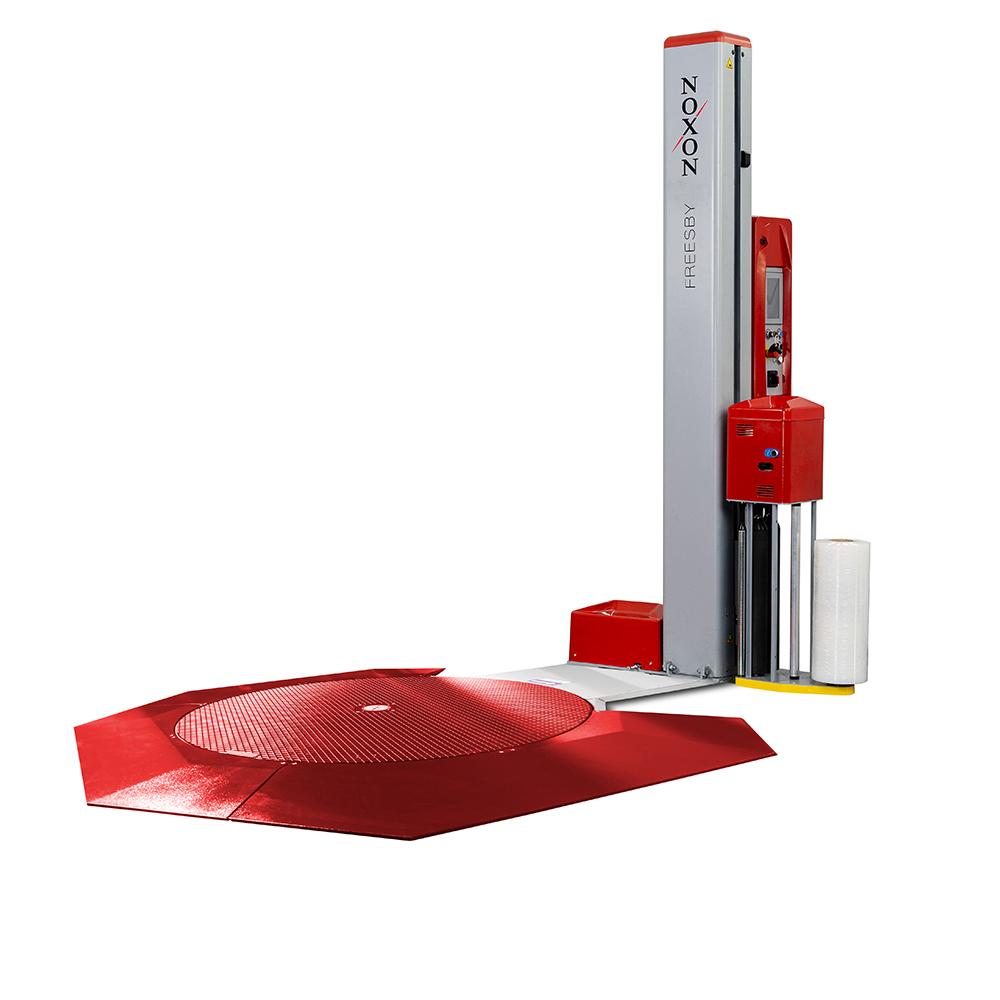

The special feature of the table is the LP base, which allows access from all sides by pallet trucks and forklifts. The height of the base also prevents accidental collisions with the forks, facilitating loading.
The Freesby LP has two user-friendly and innovative control panels (X4 and X5 controls), useful for programming and monitoring all machine cycles, with the possibility of modifying film pull levels and customising wrapping programmes.
The Freesby LP finally has three different carriages with a film pulling device through an electromagnetic brake, adjustable from the control panel.
| TECHNICAL FEATURES | FREESBY LP X4 310 | FREESBY LP X4 312 | FREESBY LP X5 314 |
| Carriage type | Electromagnetic power brake | Power pre-stretch motorized | 2 variable pre-stretch motors |
| Film stretch | Adjustable from panel | Adjustable from panel | Adjustable from panel |
| Pre-stretch | N/A | 250% | 150÷400% |
| Power supply voltage | 230V 1 PH(±10%) 50/60 Hz | ||
| Installed power | 1,5 kW | 1,9 kW | 2,3 kW |
| Carriage up-down speed | 1,4÷4 m/min | ||
| Table rotation speed | 5÷12 rpm | ||
| Plate diameter | Ø1650 mm | ||
| Plate capacity | 1200 kg | 1200 kg | 1200 kg |
| Progressive start-up | STD | ||
| Photocell delay | STD | ||
| Height detection photocell | STD | ||
| Front and rear forklift capability | Lateral | Lateral | Lateral |
