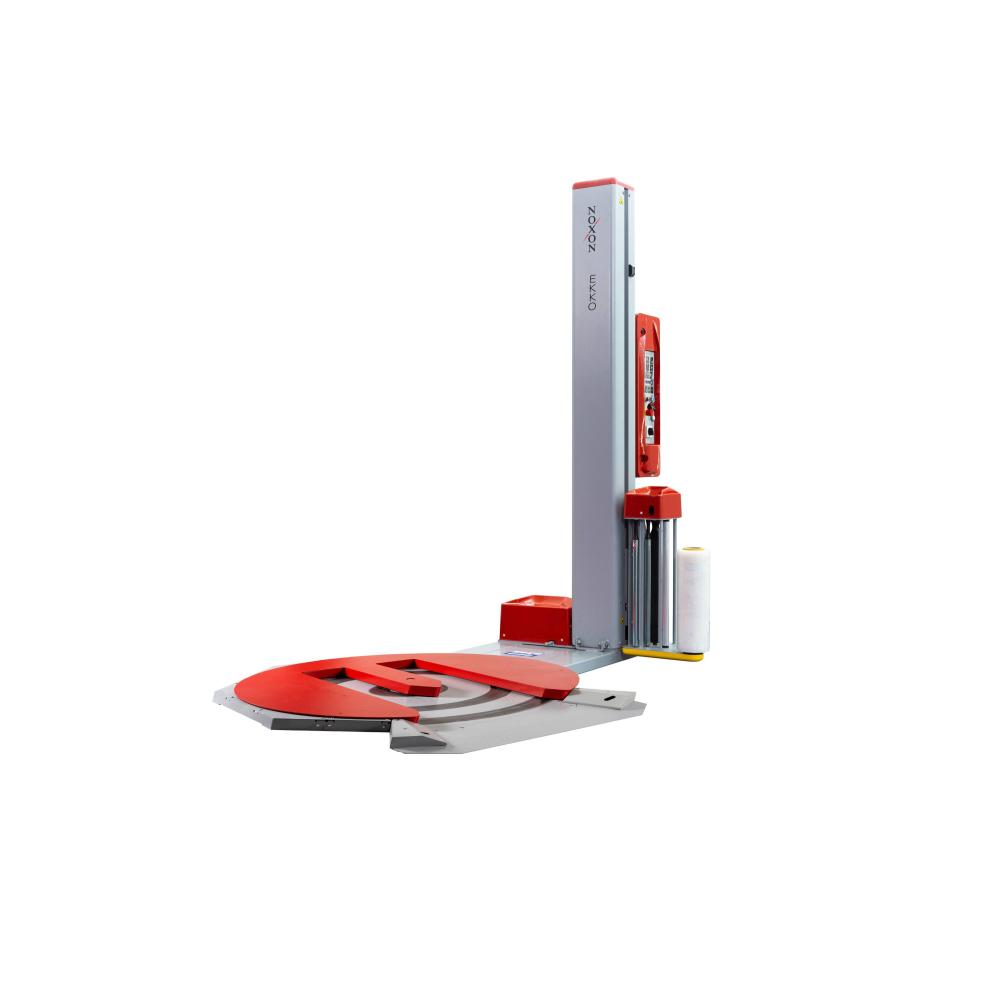

EKKO T3

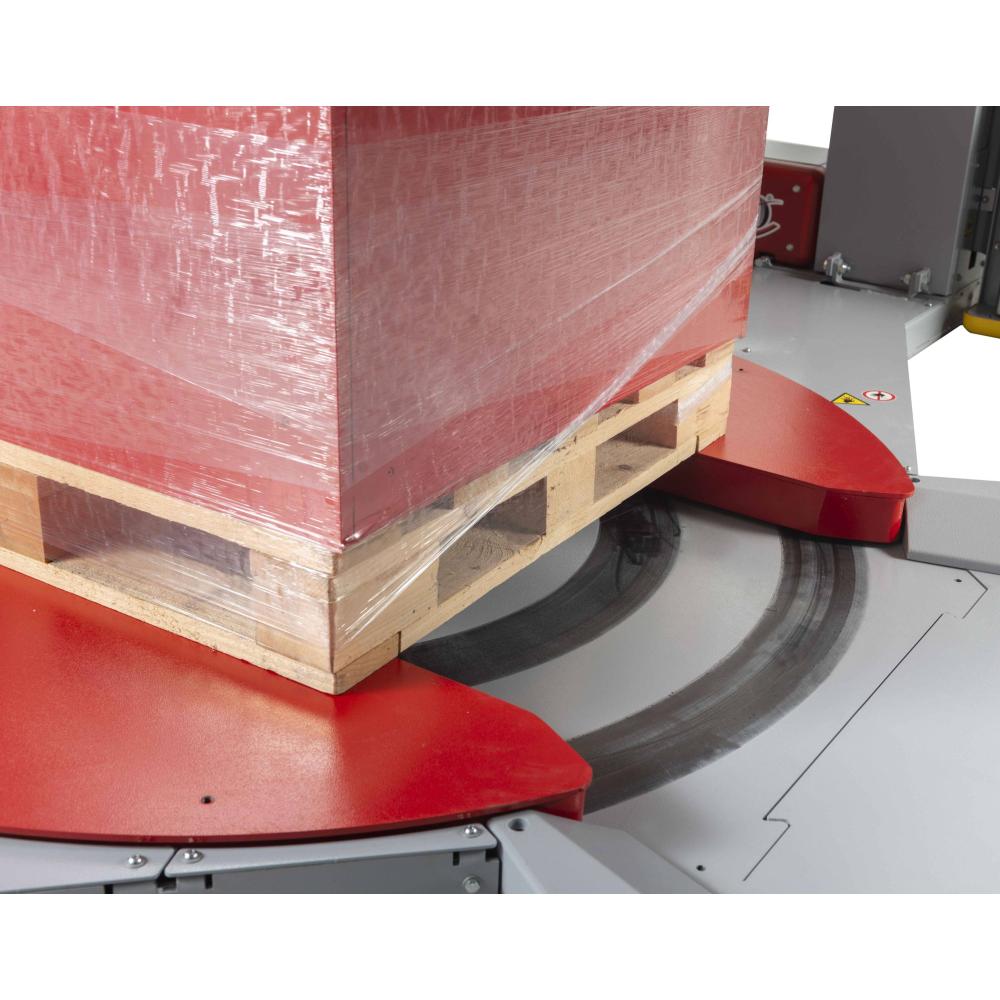

Semi-automatic turntable for wrapping pallets with stretch film, comn transpallet base for manual loading without the need for forklifts.

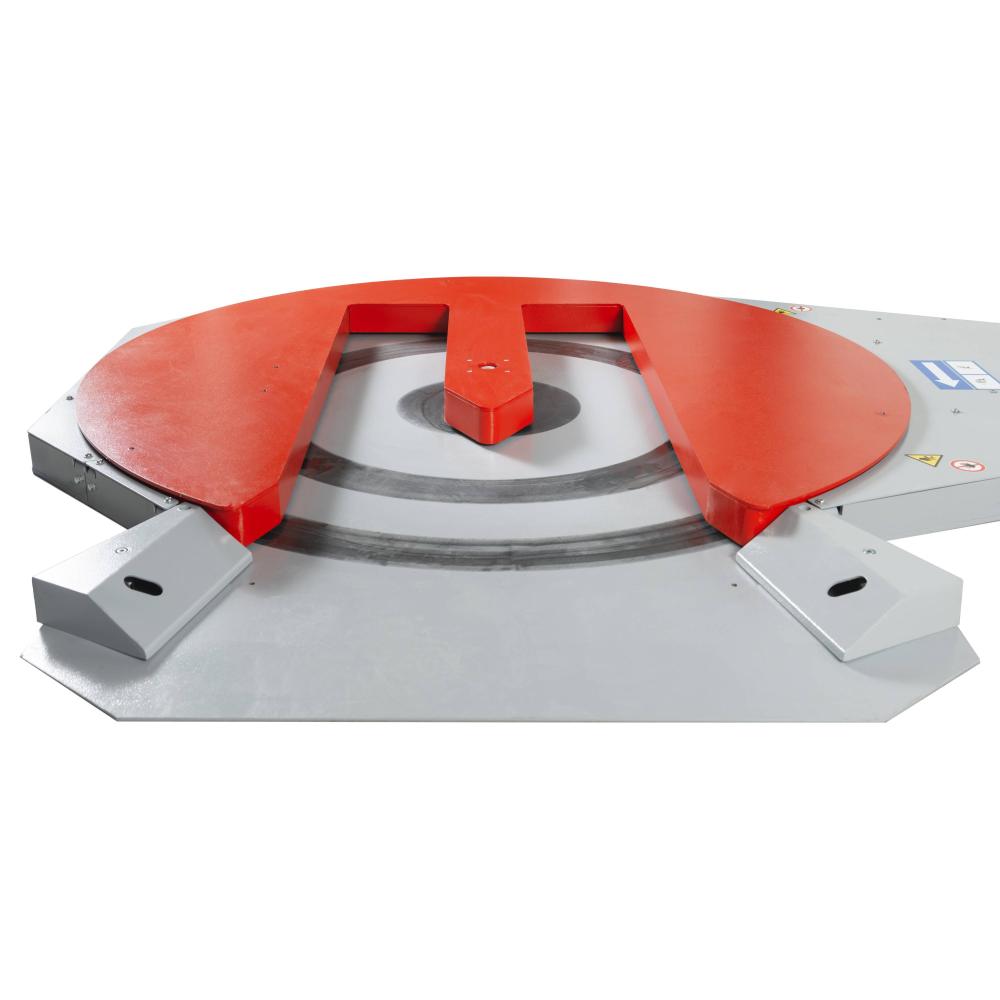

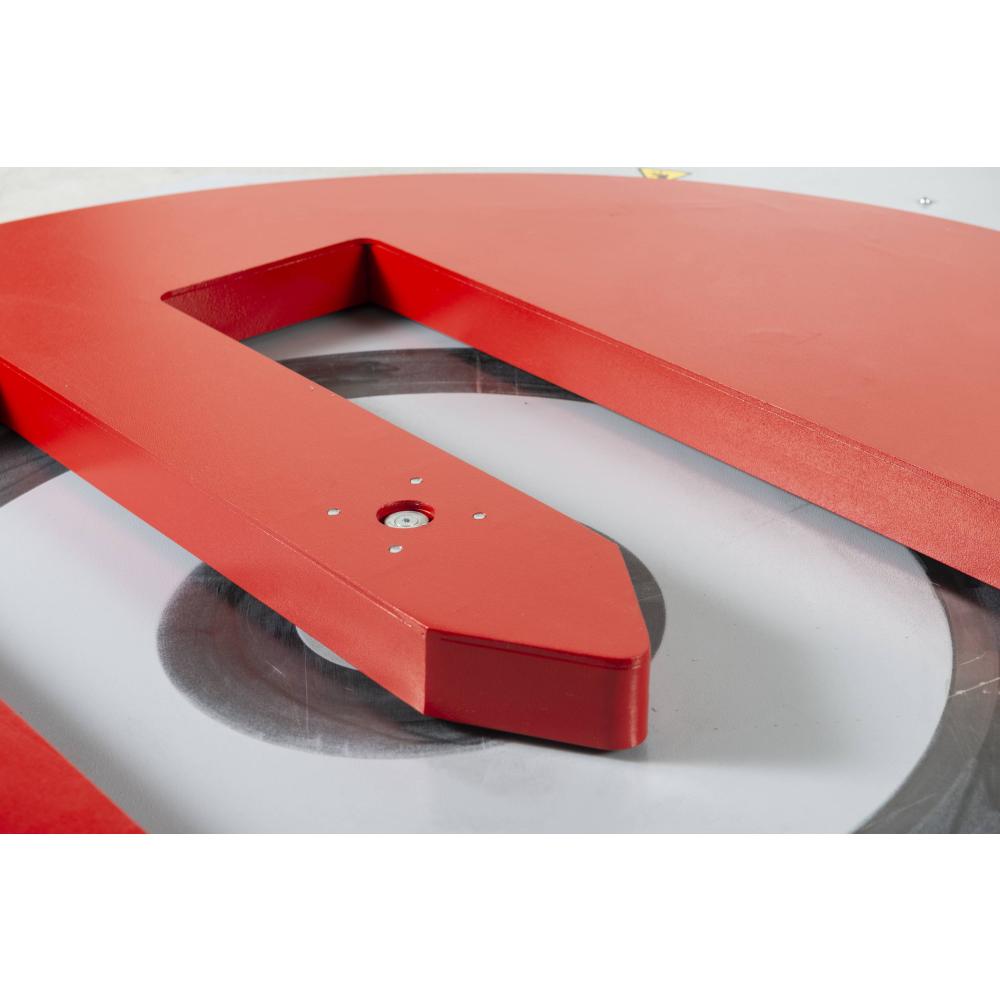

The Ekko T3 was designed with the T3 basement designed to load the table with the pallet truck and with the possibility of changing loading side as required.

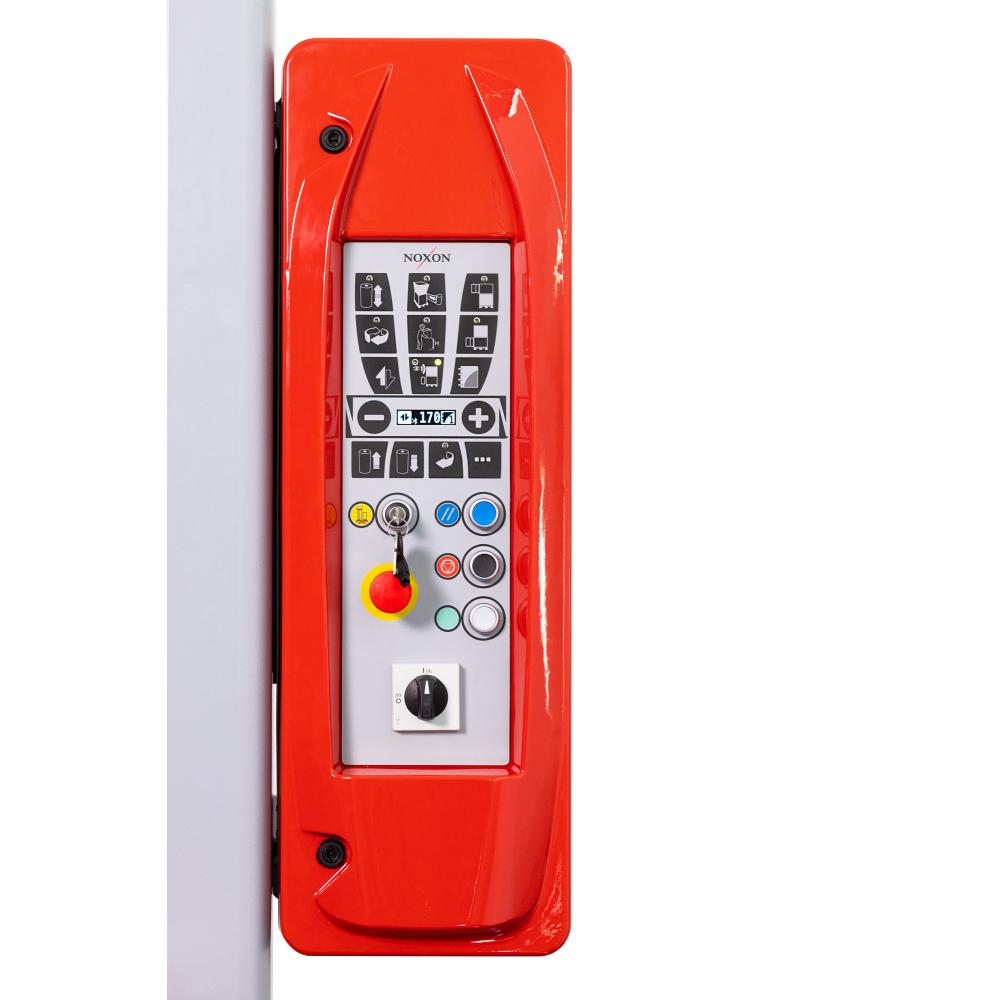

Special attention has been paid to the adjustment of the turntable’s acceleration and deceleration phases in order to guarantee maximum safety when handling unstable or delicate loads. This feature, together with the new carriage line and the “X3” control, make the Ekko T3 simple, robust and reliable.
| TECHNICAL FEATURES | EKKO T3 302 |
EKKO T3 310 |
EKKO T3 312 |
| Carriage type | Mechanical brake | Electromagnetic brake | Power pre-stretch motorized |
| Film stretch | Manual adjustment | Adjustable from panel | Adjustable from panel |
| Pre-stretch  | N/A | N/A | 250% STD |
| Power supply voltage | (VAC) 230V 1 PH(±10%) 50/60 Hz | ||
| Installed power | 1,2 kW | 1,5 kW | 1,9 kW |
| Carriage up-down speed | 1,4÷4 m/min | ||
| Table rotation speed | 5÷12 rpm | ||
| Plate diameter | Ø 1500 STD – Ø 1650 OPT | ||
| Plate capacity | 1200 kg (Ø 1500 mm) – 1500 kg (Ø 1650 mm) | ||
| Phase stopping point Progressive start-up |
STD | ||
| Photocell delay | STD | ||
| Height detection photocell | STD | ||
| Front and rear forklift capability | STD | ||
| Min product dimensions | 500x500x500 mm | ||
| Max product dimensions | 800x1200x2200 mm STD 1000x1200x2400 mm OPT |
||
| Max external diameter Internal diameter |
300 mm 76 mm |
||
| Reel height | 500 mm | ||
| Film thickness | 17÷35 μm | ||
| Max reel weight | 20 kg | ||
