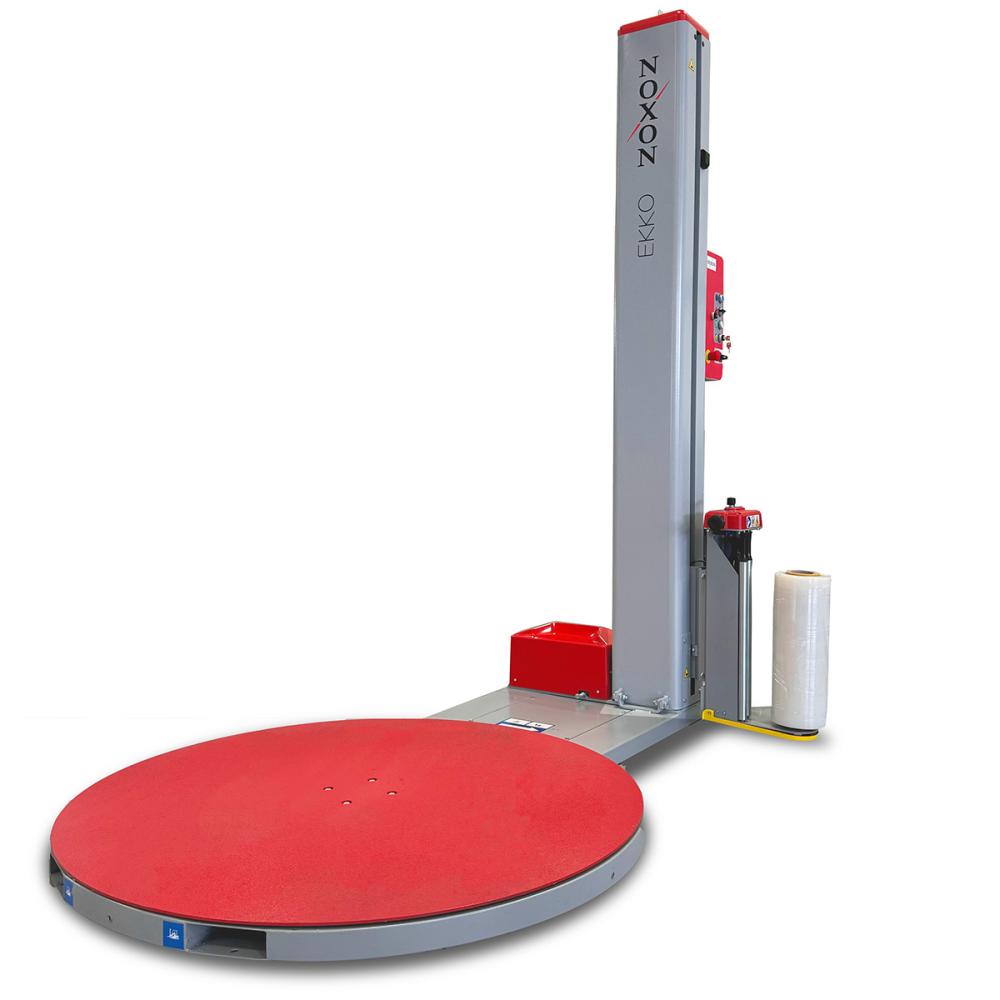

EKKO 301
Semi-automatic turntable for pallet wrapping with stretch film.
The EKKO 301 represents the new standard in vertical turntable wrappers.
Designed with a perfect balance of advanced wrapping technology and a simple, streamlined design, the EKKO 301 has been developed in compliance with the most stringent international safety regulations. Particular attention has been paid to adjusting the acceleration and deceleration phases of the turntable, thus ensuring maximum safety when handling unstable or particularly delicate loads.
Thanks to these features, the EKKO 301 is the ideal partner for anyone looking for uncompromising reliability, safety and productivity.
| TECHNICAL FEATURES | EKKO 301 |

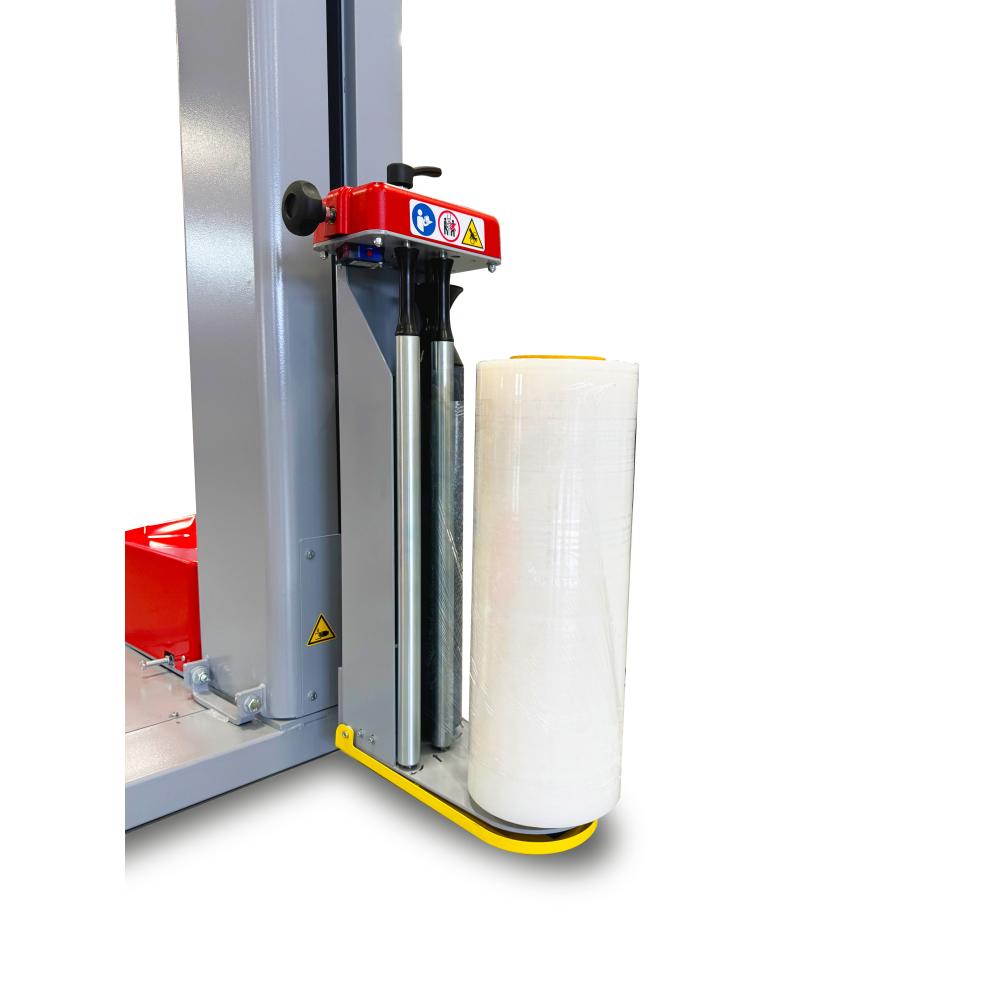

| Carriage type | Mechanical brake |
| Film stretch | Manual adjustment |
| Â Pre-stretch | N/A |
| Supply voltage | VAC 230V 1 PH(±10%) 50/60 Hz |
| Installed power | 1,2 kW |
| Carriage up-down speed | 1,4÷4 m/min |
| Table rotation speed | 5÷12 rpm |
| Platen diameter | Ø 1500 mm STD Ø 1650 mm Opt. |
| Platter capacity | 1200 kg – 2000 kg Opt. |
| Stop in phase | STD |
| Progressive start | STD |
| Photocell delay | STD |
| Height reading photocell | STD |
| Front and rear forks | STD |
| PRODUCT FEATURESÂ | |
| Minimum product dimensions | LxWxH 500 x 500 x 500 |
| Maximum product dimensions | LxWxH 800x1200x2200 STD |
| FILM REEL FEATURES | |
| Diameter ext mas | 300 |
| Reel height | 500 |
| Film thickness | 17÷35 μm |
| Inside diameter | 76 |
| Max. reel weight | 20 |
