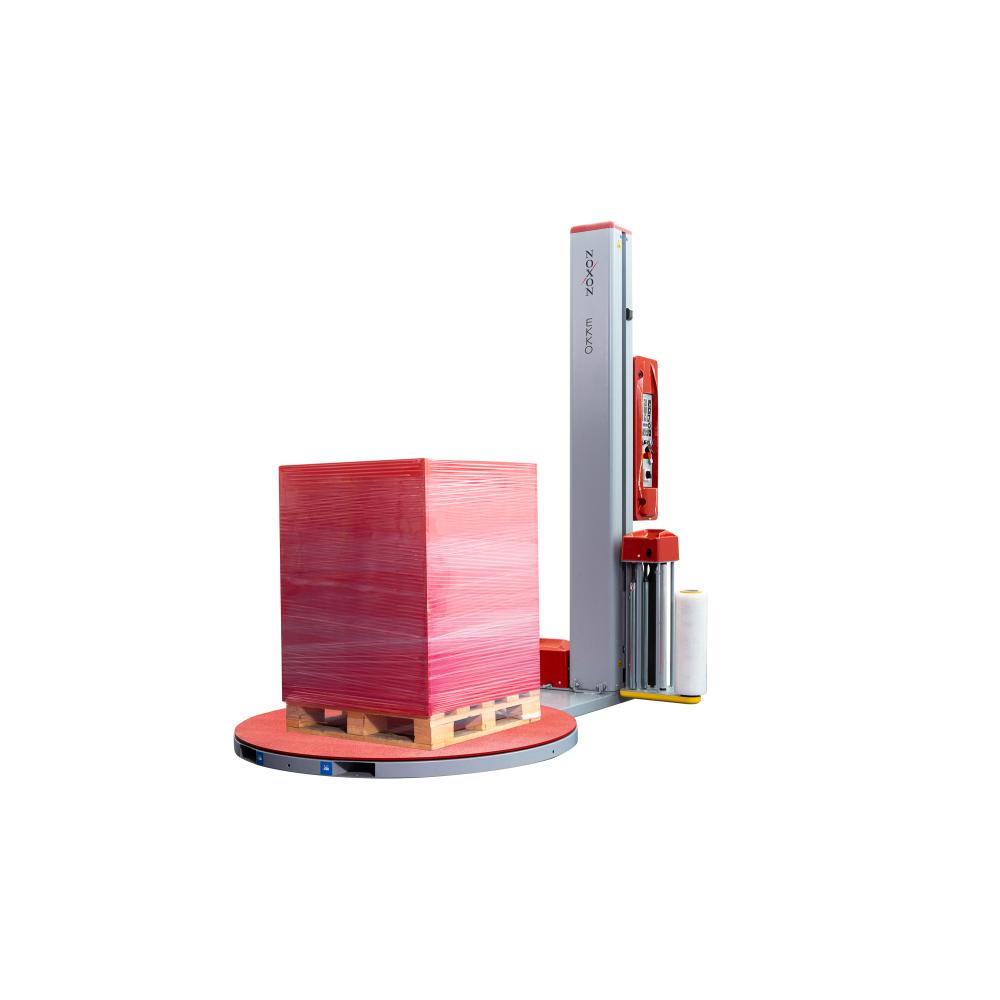

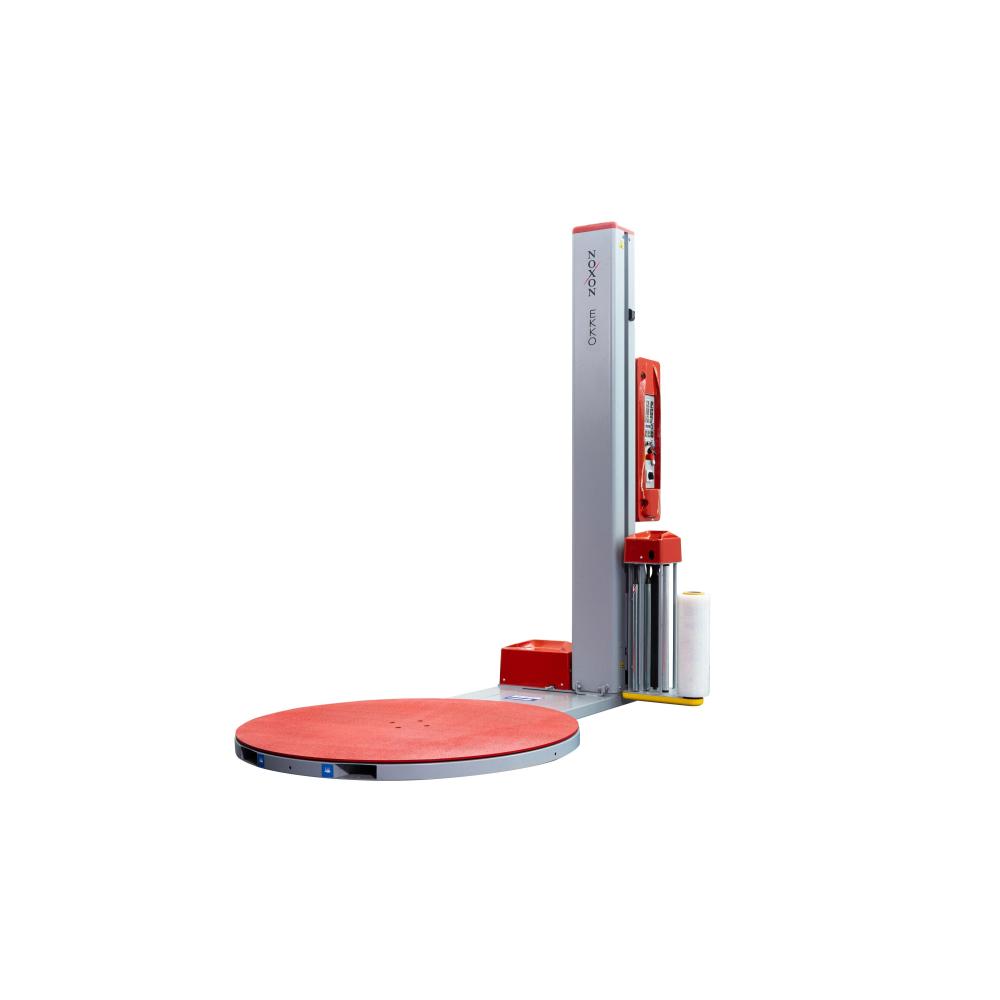

EKKO
Semi-automatic turntable for wrapping with stretch film Â
Ekko represents Noxon’s first investment in vertical turntable wrappers.
Ekko has been designed by combining the best packaging technologies with an innovative and essential design, while also meetign the strictest international safety standards.

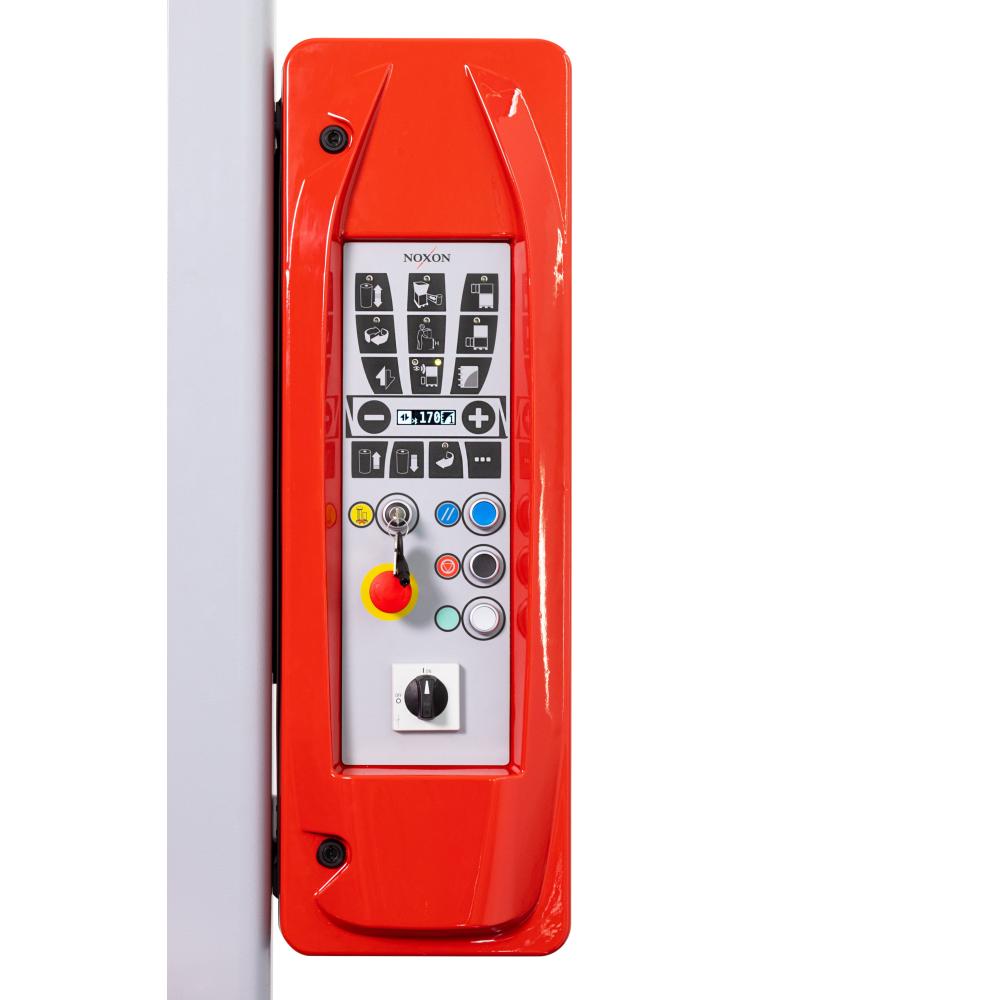

Particular attention has been paid to adjusting the accelerationa sn deceleration phases of the turntable to ensure maximum safety when handling unstable loads. These features, together with the new carriage line and the “X3” control panel, make EKKO simple, sturdy and reliable.
| TECHNICAL FEATURES | EKKO 302 | EKKO 310 | EKKO 312 |

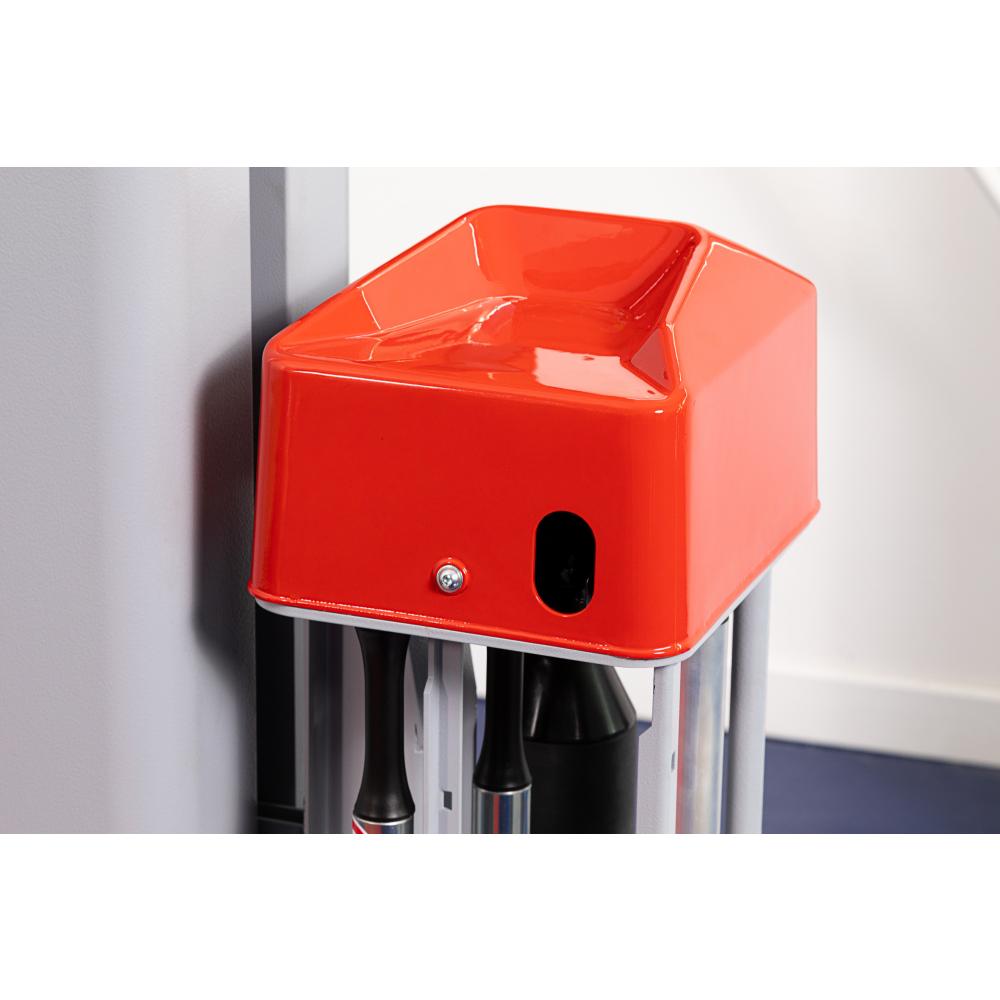

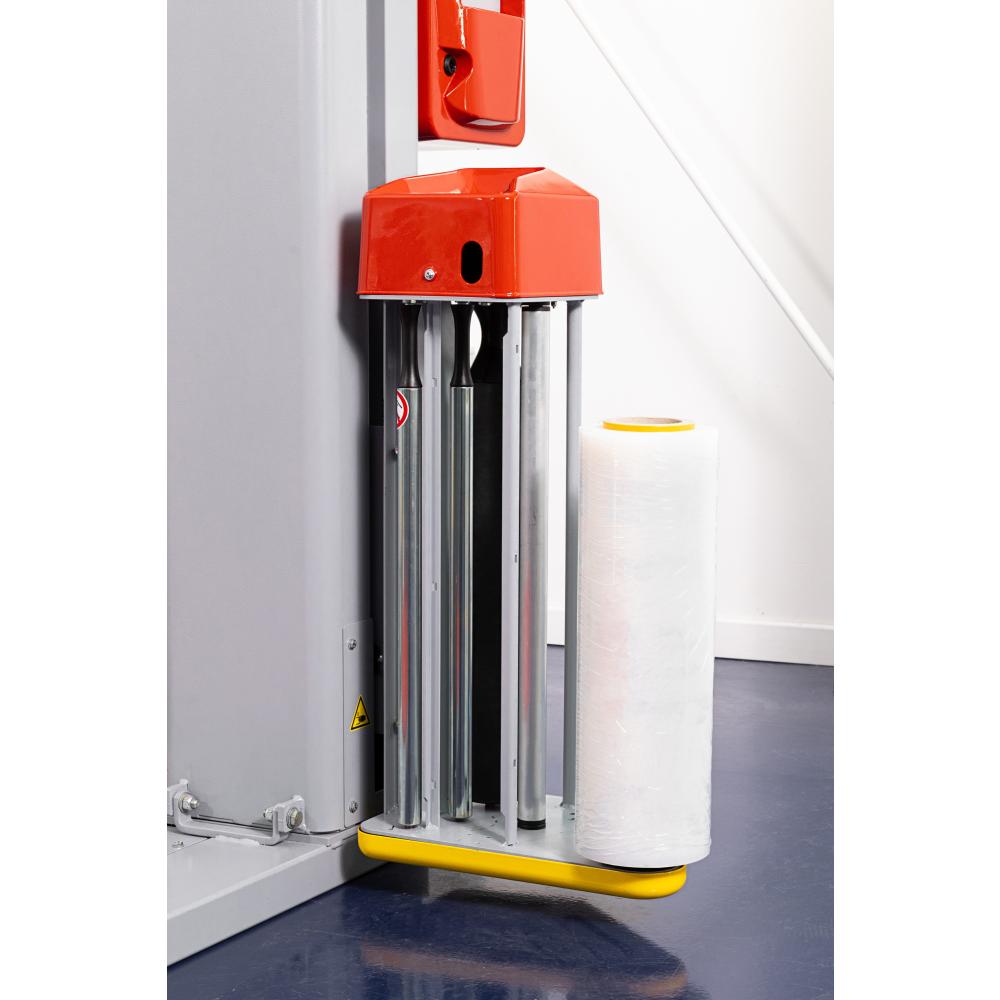

| Carriage type | Mechanical brake | Electromagnetic brake | Power pre-stretch motorized |
| Film stretch | Manual adjustment | Adjustable from panel | Adjustable from panel |
| Pre-stretch  | N/A | N/A | 250% |
| Power supply voltage | (VAC) 230V 1 PH(±10%) 50/60 Hz | ||
| Installed power | 1,2 kW | 1,5 kW | 1,9 kW |
| Carriage up-down speed | 1,4÷4 m/min | ||
| Table rotation speed | 5÷12 rpm | ||
| Plate diameter | Ø 1500 STD – Ø 1650 OPT | ||
| Plate capacity | 2000 kg STD | ||
| Phase stopping point Progressive start-up |
STD | ||
| Photocell delay | STD | ||
| Height detection photocell | STD | ||
| Front and rear forklift capability | STD | ||
| Min product dimensions | 500x500x500 mm | ||
| Max product dimensions | 800x1200x2200 mm STD 1000x1200x2400 mm OPT |
||
| Max external diameter Internal diameter |
300 mm 76 mm |
||
| Reel height | 500 mm | ||
| Film thickness | 17÷35 μm | ||
| Max reel weight | 20 kg | ||
